| Model: | COC762/B3 |
|---|---|
| Min. Order: | 1 Set/Sets |
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 2000sets | Packing: | standard wooden box |
|---|---|---|---|
| Delivery Date: | 15days | Use: | Knitting Machinery |
| Brand Name: | CREDIT OCEAN | Name: | High-Speed Crochet Machine |
| Operation Space: | 762 mm / 30 in | Gauge: | 10/12/14/15/16/18/20 GG |
| Weft Bars: | 3 guide bars | Operating Motor: | 1.5 kW |
| Sending Device: | Variable-frequency drive and meter counter | Crate of Machine: | 178*105*176 cm |
| Crate of Creel: | 250*40*45 cm | Weight of Machine and Crate: | 890 kg |
| Weight of Creel and Crate: | 235 kg |
A 762 mm, three-guide-bar crochet knitting machine for elastic and non-elastic narrow tapes, binding tapes and simple crochet structures.
| 762 mm Working width / 30 in | B3 3 guide bars | 70 mm Standard maximum tape width | 1.5 kW Motor power |
The CO 762/B3 is a conventional high-speed crochet machine with a 762 mm working width and three guide bars. It is designed for elastic and non-elastic narrow tapes, binding tape, decorative tape, waist bands, medical bandage and garment cuff tape.
762 mm / 30 in working width for efficient narrow-tape production.
Three guide bars for elastic and non-elastic crochet structures.
Gauge options include 10, 12, 14, 15, 16, 18 and 20 GG.

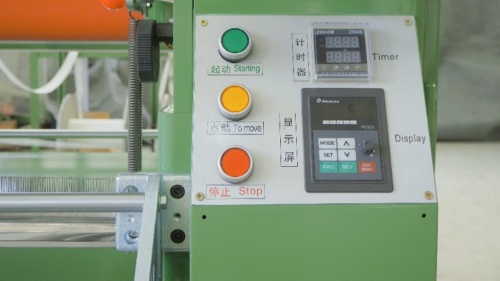

1.5 kW motor with variable-frequency speed control.
Meter counter and two-volume yarn feeding arrangement.
Standard tape width up to 70 mm per tape; wider construction requires confirmation.

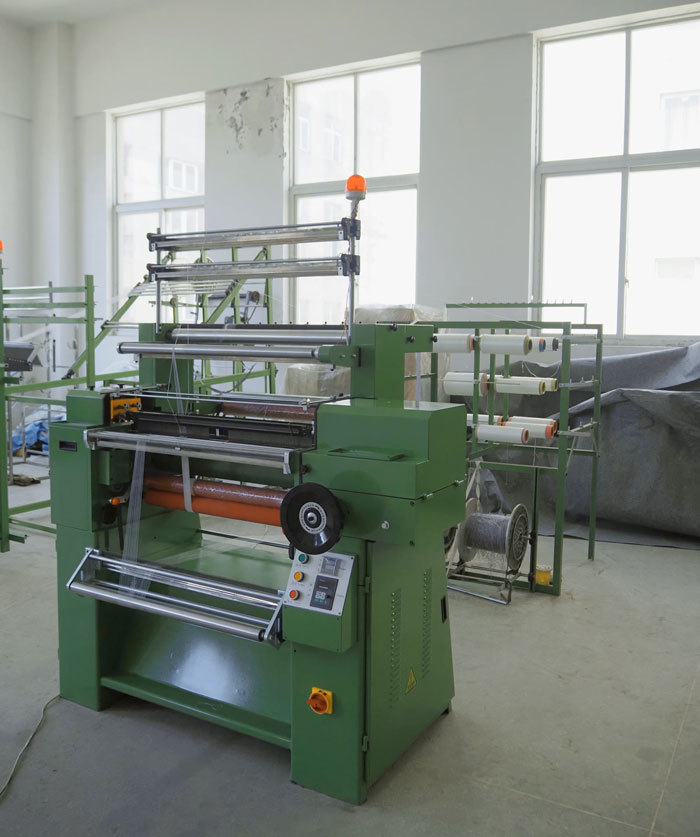

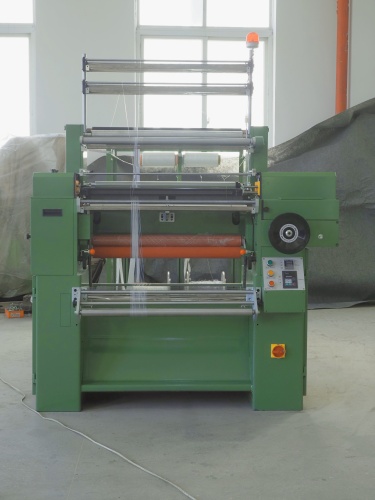

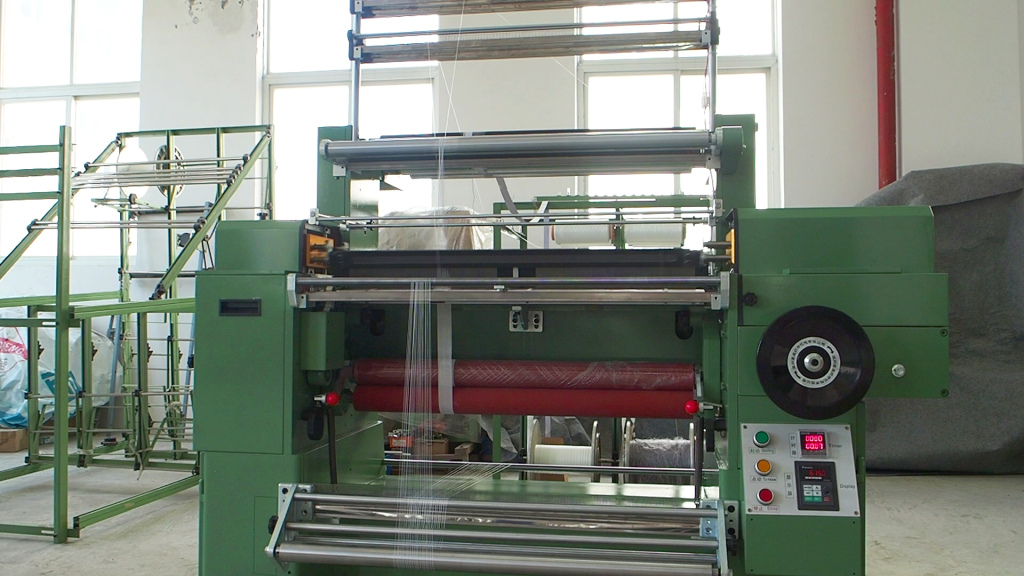

 Front three-quarter view |  Rear yarn feeding and guide system |

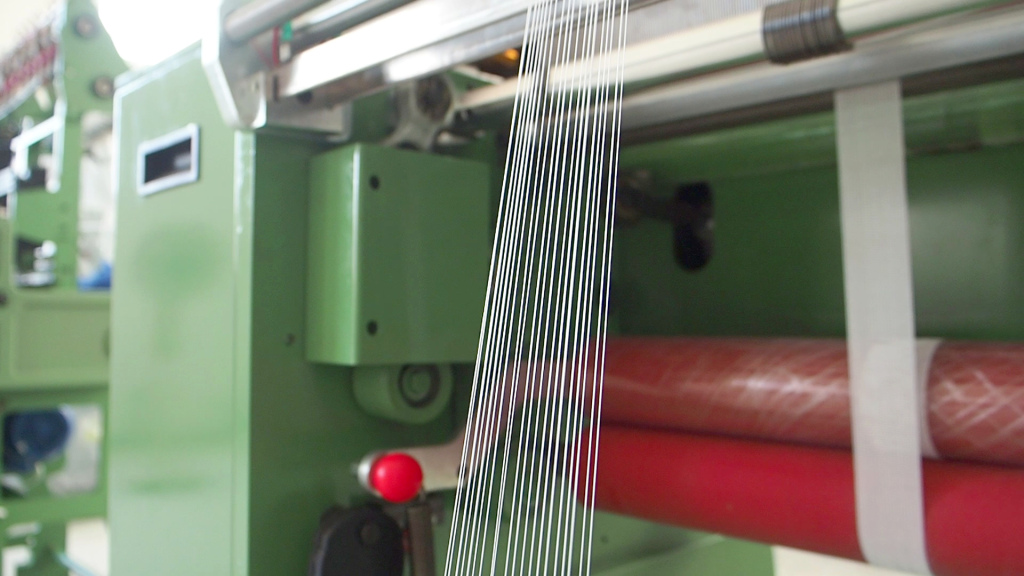

 Working-area detail |
|

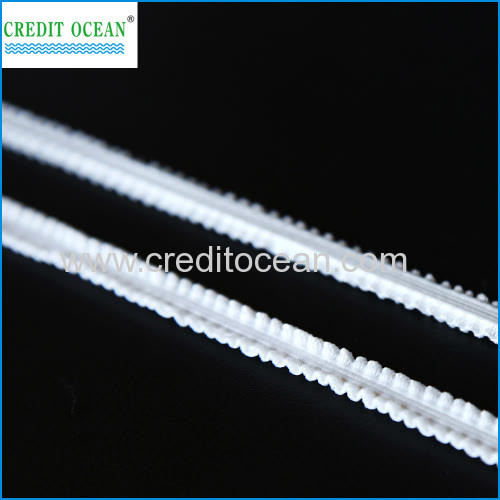

Typical applications include underwear elastic, medical bandage, waistband and garment trim, protective-garment cuffs, binding tape and decorative narrow tape. Final suitability depends on the physical sample, yarn, gauge and target width.
| Model | CO 762/B3 / COC762/B3 |
|---|---|
| Working width | 762 mm / 30 in |
| Guide bars | 3 |
| Standard tape width | Up to 70 mm per tape |
| Gauge options | 10 / 12 / 14 / 15 / 16 / 18 / 20 GG |
| Motor power | 1.5 kW |
| Speed control | Variable-frequency drive; catalogue maximum up to 1500 rpm |
| Reference power supply | 3-phase, 380 V, 50 Hz; confirm before quotation |
What does 762/B3 mean?
762 is the 762 mm working width and B3 means three guide bars.
Which products suit this machine?
Elastic and non-elastic narrow tapes, binding tape, decorative tape, waistband, medical bandage and garment trim.
Can it produce tape wider than 70 mm?
Wider products require a special configuration and must be confirmed from the sample.
What information is needed for a quotation?
Provide tape sample or drawing, width, thickness, elasticity, yarn, gauge, target output, voltage and destination port.
We help confirm gauge, guide-bar arrangement, yarn feeding, installation requirements and auxiliary equipment before quotation. Final configuration and output are subject to sample confirmation.
