On-Running Registration Flexo Printing Machine for Narrow Tapes manufacturers and suppliers in China

On-Running Registration Flexo Printing Machine for Narrow Tapes Admin Edit

17850.0 USD

Model:	COR-62B
Min. Order:	1 Set/Sets
Payment Terms:	L/C, T/T
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air
Production Capacity:	100/month

Packing:	plywood case	Delivery Date:	15-20days
Plate:	Others	Type:	Flexographic Printer
Color & Page:	Multicolor	Usage:	Label Printer
Brand Name:	CREDIT OCEAN	Automatic Grade:	Automatic
Voltage:	220v/50Hz	Dimensions(LWH):	210011002100
Name:	Flexo printing machine	Printing speed:	60m/min
Color:	2.3.4.6 Color	Material:	Fabric
Application:	Label Printing	Product name:	multicolors Flexographic Printing
Printing Length:	300mm

On-Running Registration Flexo Printing Machines for Narrow Tapes

CREDIT OCEAN COR-series flexo printing machines print on narrow tapes. The operator can adjust the plate-cylinder position during printing to correct color registration. Choose the model by the colors needed on each side of your tape.

Choose Your Front and Reverse Colors

The five COR models below offer different color arrangements. Send your artwork and tape sample so we can recommend the model for your job.

Model	Front / Reverse Colors	Power	Weight	Machine Size (mm)
COR-21B	2 / 1	5.5 kW	800 kg	2100 × 1000 × 1800
COR-31B	3 / 1	5.5 kW	850 kg	2200 × 1000 × 1800
COR-41B	4 / 1	5.5 kW	900 kg	2200 × 1000 × 1800
COR-42B	4 / 2	5.5 kW	1000 kg	2200 × 1000 × 1800
COR-62B	6 / 2	6.5 kW	1200 kg	2450 × 880 × 2150

Printing Specifications

Maximum printing width: 150 mm.

Print repeat range: 99.75–300 mm, depending on the plate cylinder.

Maximum printing speed: 60 m/min. Actual production speed depends on the tape, ink and artwork.

Feeder and rewinder capacity: 400 mm diameter.

Electrical supply: 220 V as listed in the catalogue. Send your required voltage for confirmation.

Registration and Print Repeat

Adjust the plate-cylinder position while the machine runs to correct color registration. Change the gear plate cylinder to change the print repeat. For white printing on black tape, the COR-42B is a listed option; send your tape and ink requirements for sample testing.

Machine Views

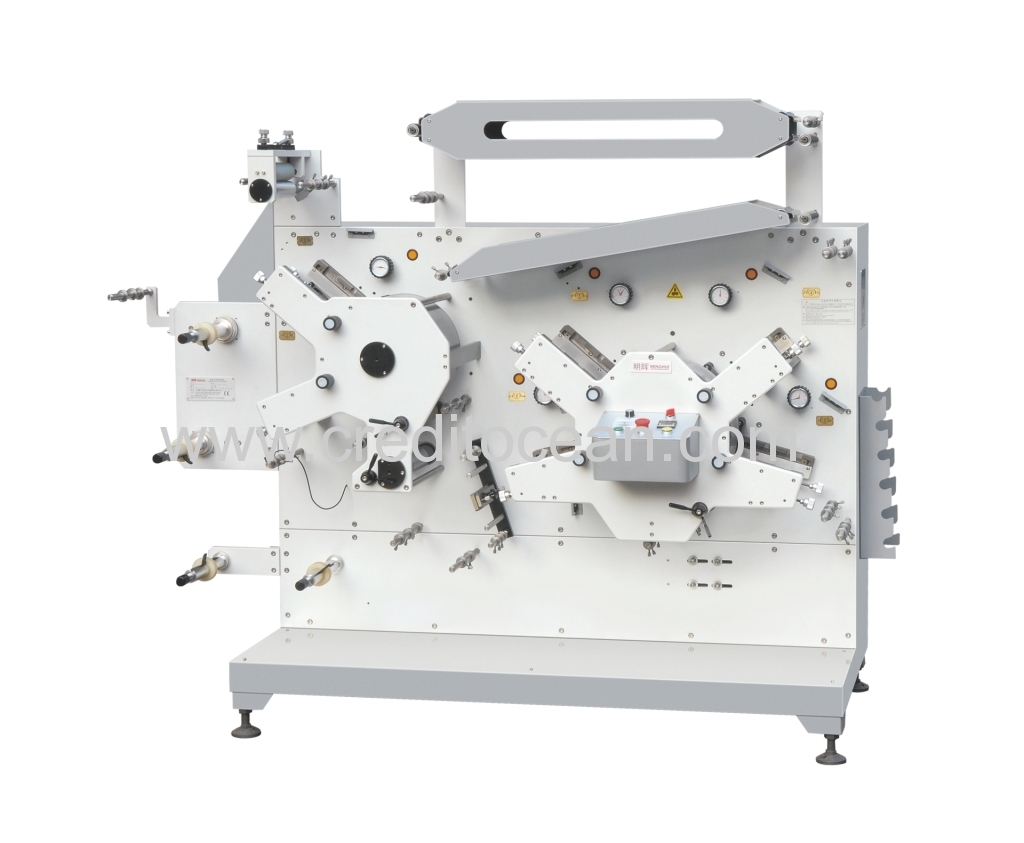

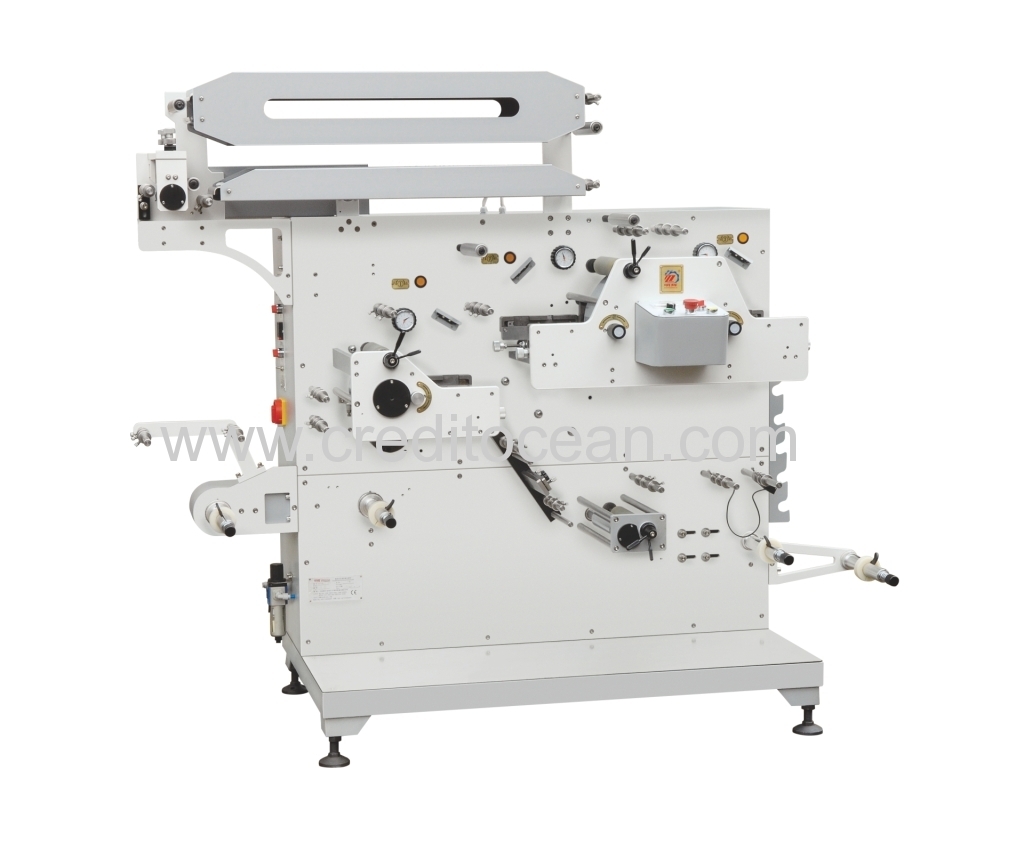

COR-21B · 2 front / 1 reverse color	COR-42B · 4 front / 2 reverse colors

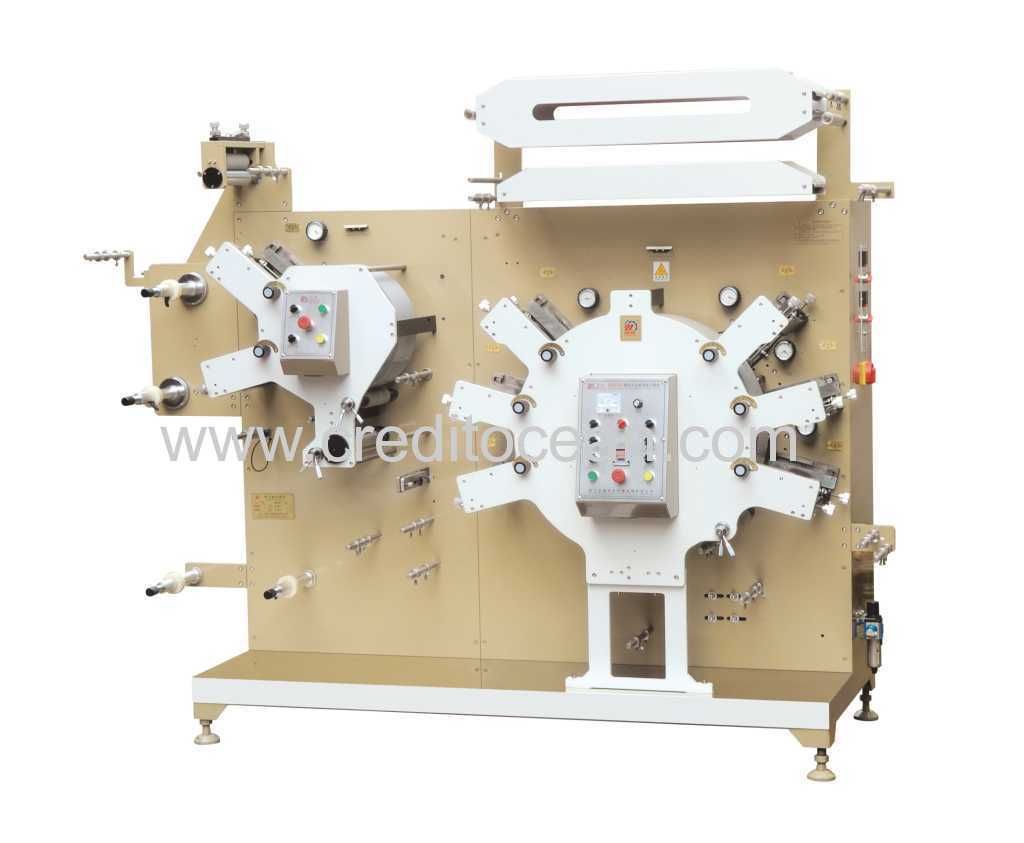

COR-62B · 6 front / 2 reverse colors

Buyer Questions

Can registration be adjusted during printing?
Yes. The operator can adjust the plate-cylinder position while the machine runs to correct color registration.

Which models have two reverse-side colors?
COR-42B and COR-62B have two reverse-side printing groups. COR-21B, COR-31B and COR-41B each have one.

Can I change the print repeat?
Yes. The gear plate cylinder can be exchanged to change the repeat. Send your required repeat length and artwork so we can confirm the cylinder.

Can I print white text on black tape?
COR-42B is listed for this application. Send your tape sample and ink requirements so we can confirm the printing result.

Ask for a Machine Quote

Send your tape material and width, artwork, colors required on each side, print repeat, sample photo and voltage. CREDIT OCEAN will recommend a COR model and confirm its specifications for your quotation.
