High-Speed Crochet Machine for Elastic and Non-Elastic Tapes manufacturers and suppliers in China

High-Speed Crochet Machine for Elastic and Non-Elastic Tapes Admin Edit

3000.0 USD

Model:	CO 965/B3
Min. Order:	1 Set/Sets
Trade Term:	FOB
Payment Terms:	Paypal, L/C, D/P, D/A, T/T, WU, Money Gram
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air, Land

Production Capacity:	1000sets/months	Packing:	standard packing
Delivery Date:	10days	Type:	Others
Use:	Knitting Machinery	Brand Name:	Credit Ocean
Working Width:	965 mm / 38 in	Gauge:	15G reference
Weft Bars:	3

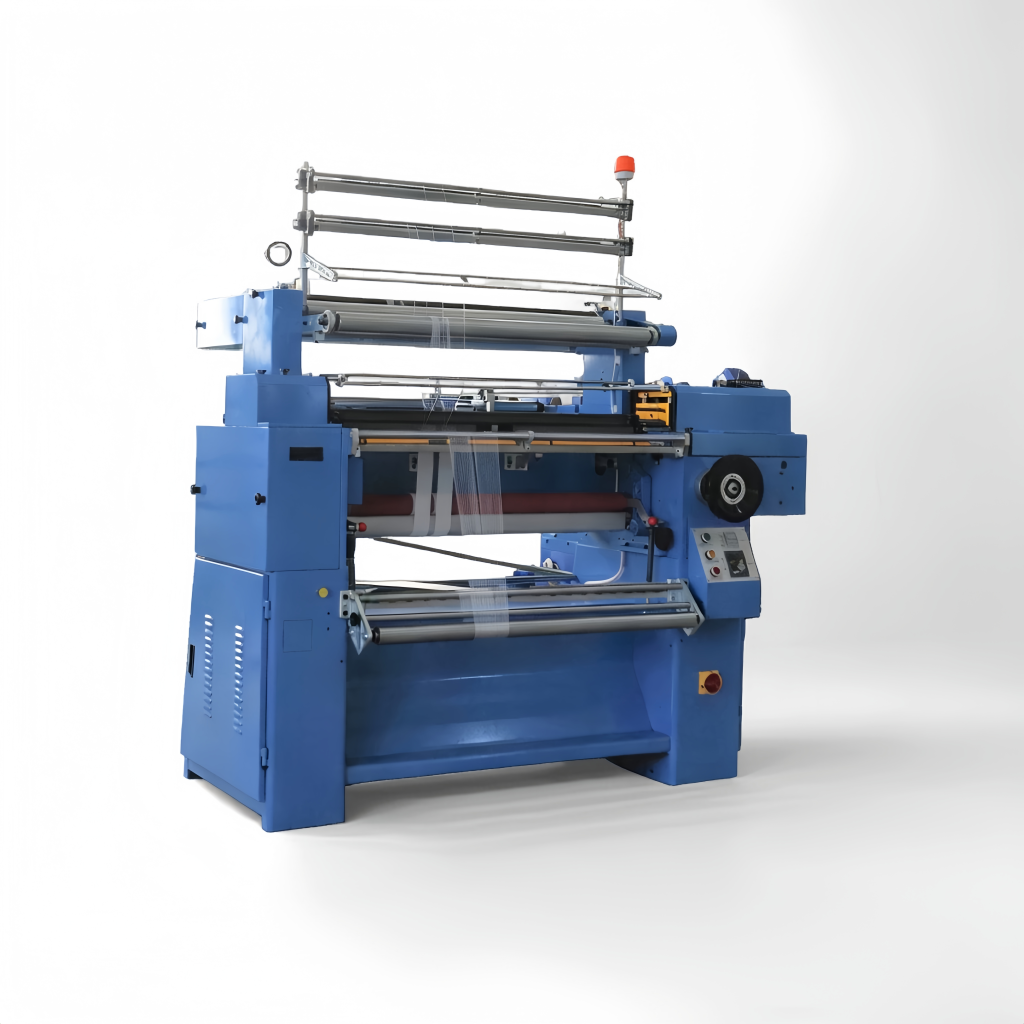

CREDIT OCEAN CO 965/B3 High-Speed Crochet Machine

The CO 965/B3 is designed for elastic and non-elastic narrow tapes. Its 965 mm (38 in) working width provides more layout space for parallel tape positions when tape width and spacing permit. Three weft guide bars and a 15G reference configuration support binding tape, decorative tape, waistbands and related narrow fabrics. Final setup should be confirmed against the buyer's sample and yarn plan.

Key Features

965 mm / 38 in working width
Three weft guide bars
15G reference gauge
Frequency-variable speed control
Yarn-break and abnormal-winding stop systems
Elastic-material tri-roller feeding and double-edge winding system
Steel reed and stop indicator; automatic oil circulation is optional

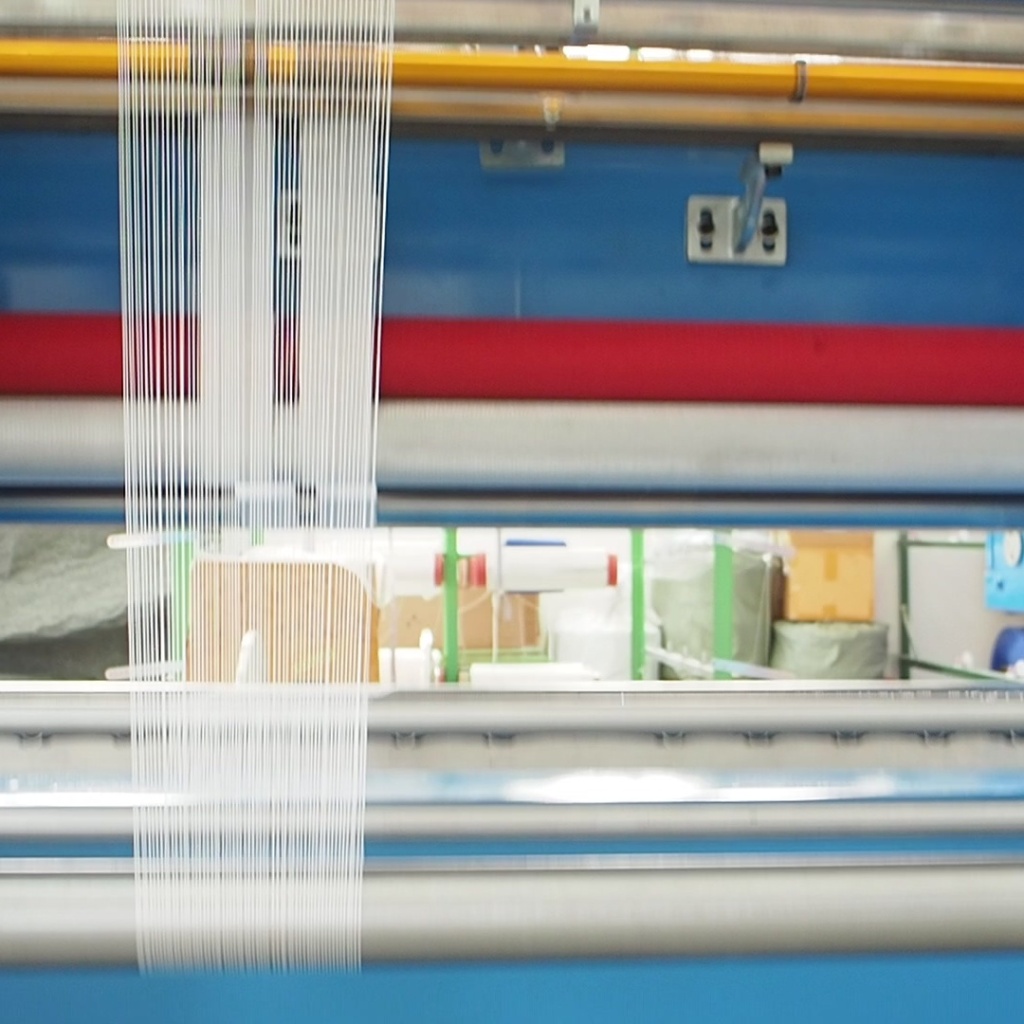

Front operating view	Machine frame and yarn path

Applications

Typical products include elastic tape, non-elastic tape, binding tape, decorative tape, mask straps, stretch tape, waistbands, underwear elastic and garment trim. Applications include apparel, home textiles and selected medical or automotive narrow-fabric components.

Reference Specifications

Item	Specification
Model	CO 965/B3; Jiasheng reference JSG965/B3
Working width	965 mm / 38 in
Needle gauge	15G reference
Weft guide bars	3
Maximum fabric width	70 mm reference
Motor power	1.5 kW
Speed	1500 rpm reference
Net weight	Machine 820 kg; back creel 120 kg
Packing size	Machine 1900 × 1200 × 1600 mm; back creel 2600 × 150 × 150 mm

Production Planning

Compared with the 762 mm CO 762/B3 reference, the 965 mm bed provides 203 mm more layout space. Additional tape positions may fit where product width and spacing permit. Actual output depends on yarn, gauge, stitch structure and stable operating speed. The 1500 rpm value is catalogue reference data rather than a guaranteed production speed.
