| Model: | COYB90-48-1 |
|---|---|
| Min. Order: | 1 Set/Sets |
| Payment Terms: | Paypal, L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 10000 |
| Packing: | Standard carton... | Delivery Date: | 15-20days |
|---|---|---|---|
| Type: | Others | Use: | Weaving Machinery |
| Brand Name: | CREDIT OCEAN | Types: | Round cord braiding machine |
| Materials: | PP, polyester, PE, HDPE, cotton, nylon, and composite yarns | Ribbon number: | 4 |
| Horngear size: | 90 | Machinesize in mm: | 1240 x 1080 x 1770 mm |
| Motor power: | 1HP(0.75KW) | Voltage: | 380V |
| Rpm.hornger: | 360 | Carrier type: | A |
| Optional systems: | Rubber feeder, cross-winding system, spool packing system |

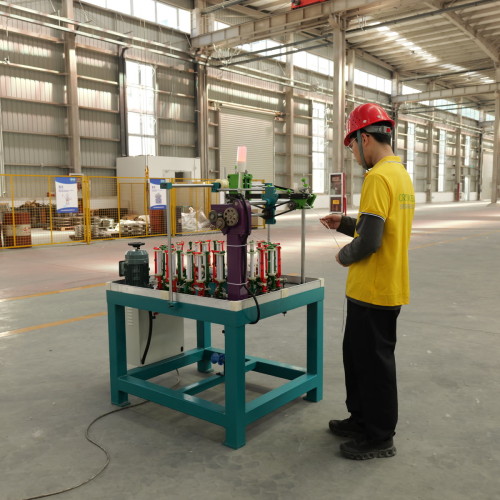

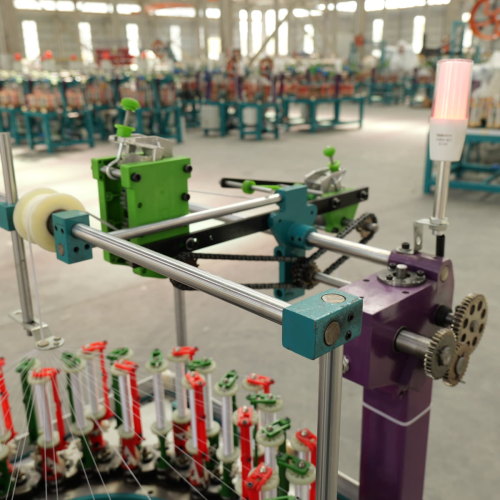

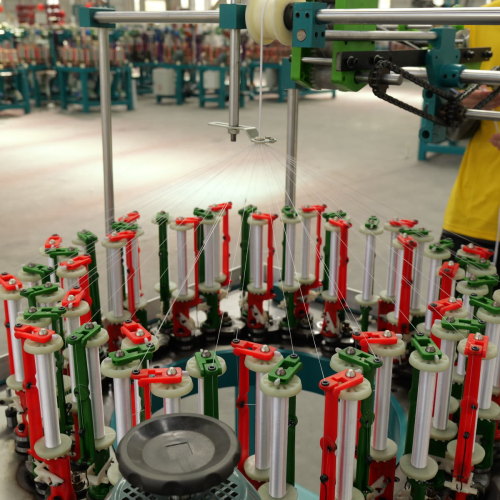

High Speed Cord Braiding Machine
The COYB90-48-1 is a multicolor lace braiding machine by CREDIT OCEAN. It is designed to braid round lace, flat lace, elastic cord, shoelace, piping cord, double-color cord and decorative multicolor lace used in footwear, garment accessories, home textile and craft products.
Compact machine body for easier floor planning and daily operation.
A04 bobbin system for stable yarn feeding and continuous production.
Adjustable pitch options for different lace and cord structures.
OEM configuration available for feeding, winding and packing requirements.
| Item | Data |
| Model | COYB90-48-1 |
| Machine type | Multicolor lace braiding machine |
| Main machine size | 1240 x 1080 x 1770 mm |
| Bobbin size | A04, 48 x 142 mm |
| Horngear speed | 288 RPM |
| Motor power | 0.75 kW |
| Materials | PP, polyester, PE, HDPE, cotton, nylon and composite yarns |
| Optional systems | Rubber feeder, cross-winding system, spool packing system |
Applications
Shoelace
Round and flat shoelace for footwear and accessories.
Elastic Cord
Elastic lace and cord for garments, bags and home textile products.
Decorative Lace
Double-color, triangular, square, quadrangular and multicolor lace.

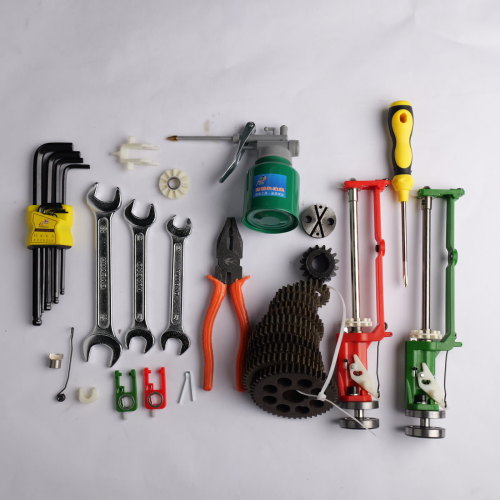

CREDIT OCEAN can prepare an accessory box according to final machine configuration, material and production plan.
A04 bobbin set for replacement and production changeover
Needles, carriers, thread guides and common wear parts
Gear, belt and electrical spare parts according to final configuration
Basic tools for daily adjustment and maintenance
Optional rubber feeder, cross-winding or spool packing system
What is the COYB90-48-1 braiding machine used for?
It is used for producing shoelaces, round lace, flat lace, elastic cord, piping cord and multicolor decorative lace.
What materials can be used on this machine?
Common materials include PP, polyester, PE, HDPE, cotton, nylon and other composite yarns.
Can CREDIT OCEAN provide OEM configuration?
Yes. The machine can be matched with rubber feeder, cross-winding system, spool packing system and other production requirements after confirmation.
Is an accessory box available?
Yes. CREDIT OCEAN can prepare bobbins, thread guides, common wear parts, tools and other spares according to the final configuration.
What information is needed for quotation?
Please share target product, yarn material, lace width or cord type, output requirement, voltage requirement and optional feeding or winding needs.
