CO 10-30 High-Speed Narrow Fabric Needle Loom

The CREDIT OCEAN CO 10-30 is a high-speed shuttleless needle loom configured with 10 tape lines for weaving elastic and non-elastic narrow fabrics. In the model designation, 10-30 means 10 tape lines with a maximum reed width of 30 mm for each line.

It is suitable for narrow tapes used in garments, footwear, binding, bags and related applications. Final machine configuration depends on yarn type, tape width, thickness, elasticity, weave structure and the buyer's finished sample.

Key Features

• 10 tape lines for parallel narrow-fabric production

• Maximum reed width of 30 mm per tape line

• 8-16 head frames for different fabric structures

• Documented weft density range of 3.5-36.7 wefts/cm

• Machine speed up to 1200 RPM under the catalogue configuration

• Single rubber take-up roller as standard; double roller optional

• Configuration support based on tape sample, yarn and elasticity

Applications

Typical products include garment tapes, underwear elastic, footwear tapes, narrow binding tape, light bag webbing, ribbon, PP tape, cotton tape, safety belt and chest belt within the applicable 30 mm width range. Suitability must be confirmed against the finished tape structure.

Machine and Product Views

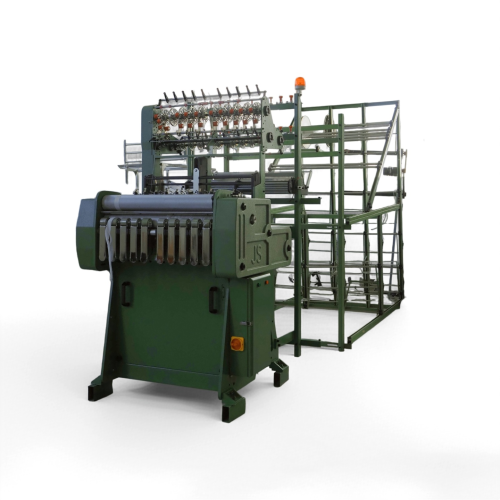

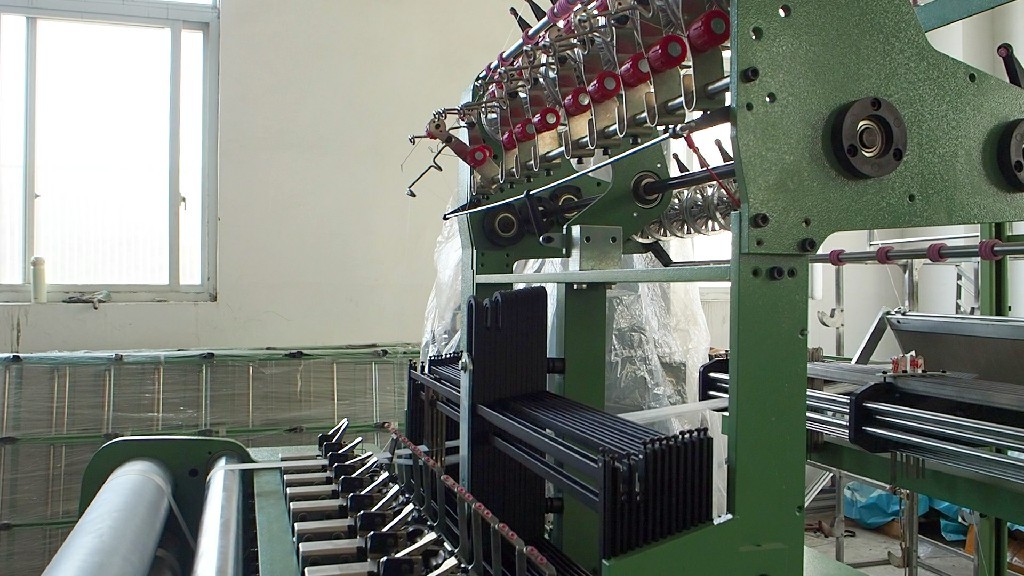

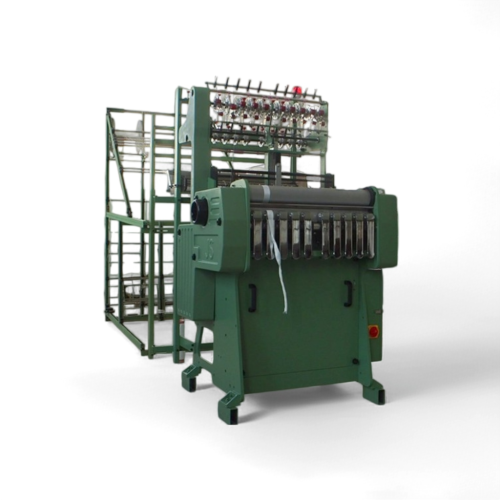

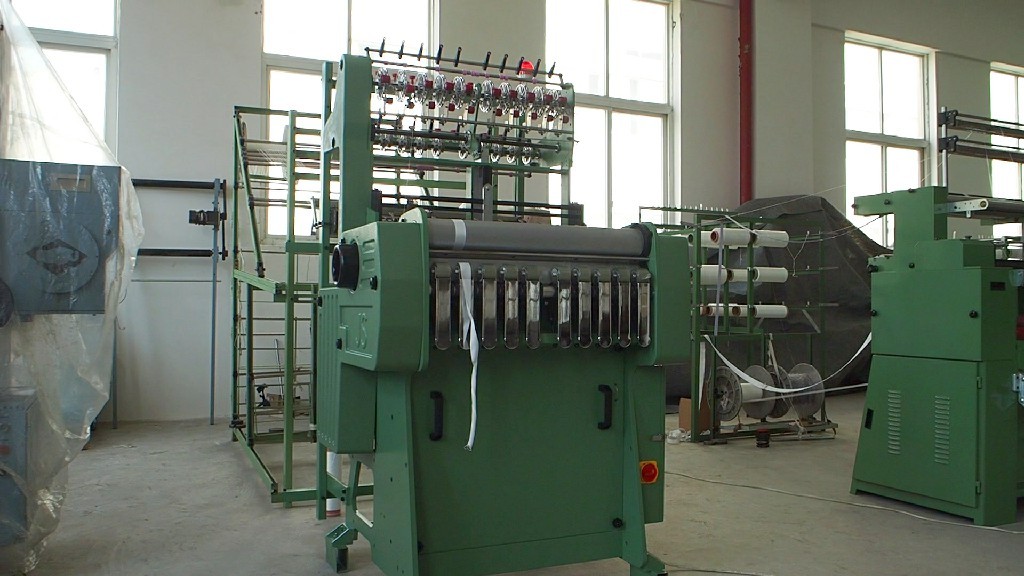

CO 10-30 narrow fabric needle loom	Machine frame and working section

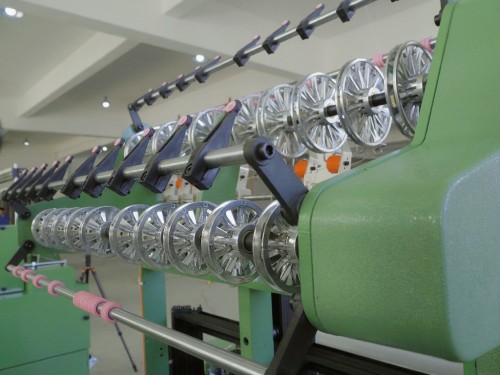

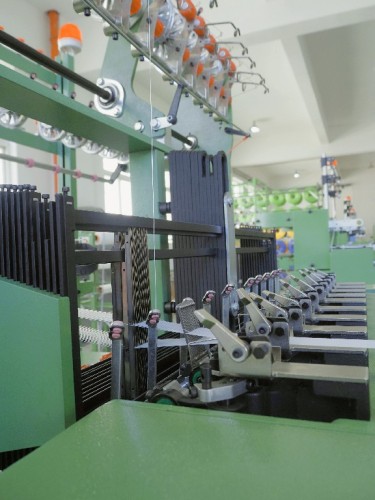

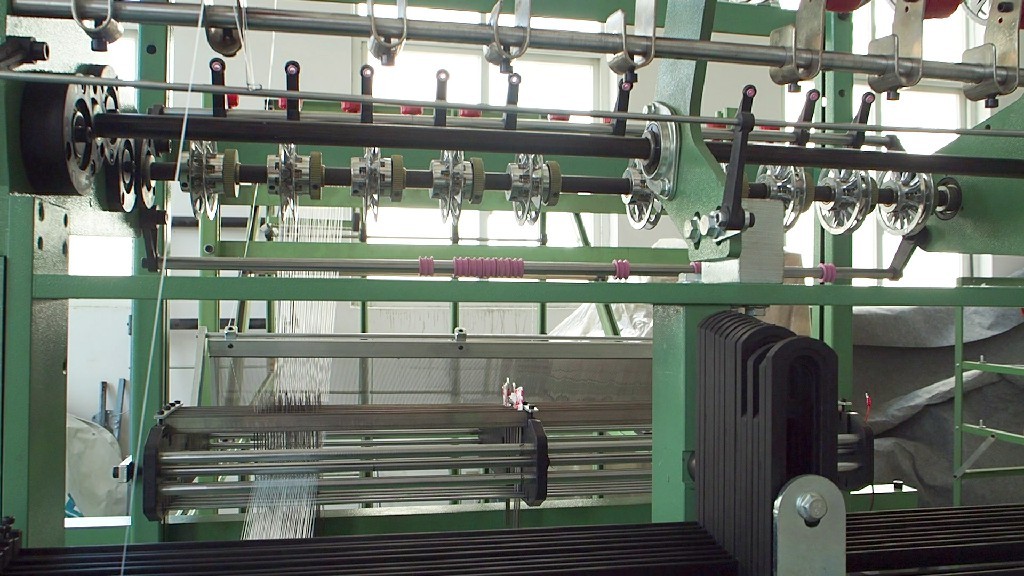

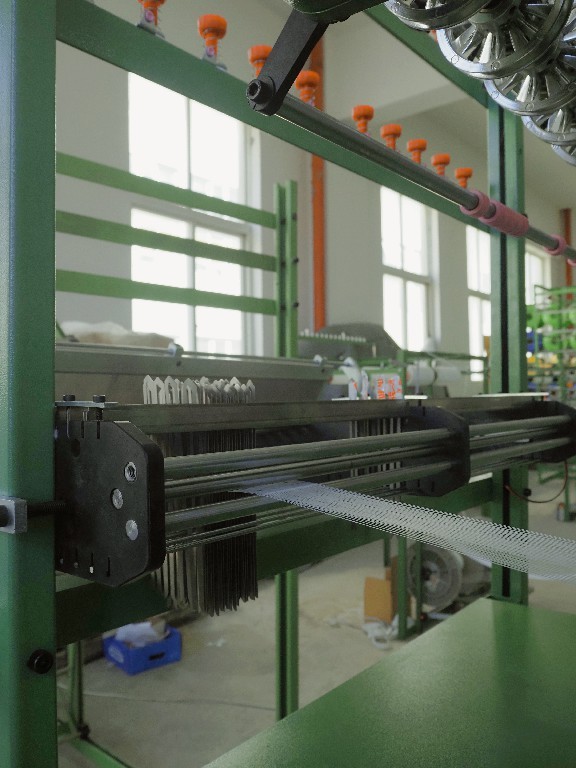

Needle weaving area	Yarn feeding and guide system

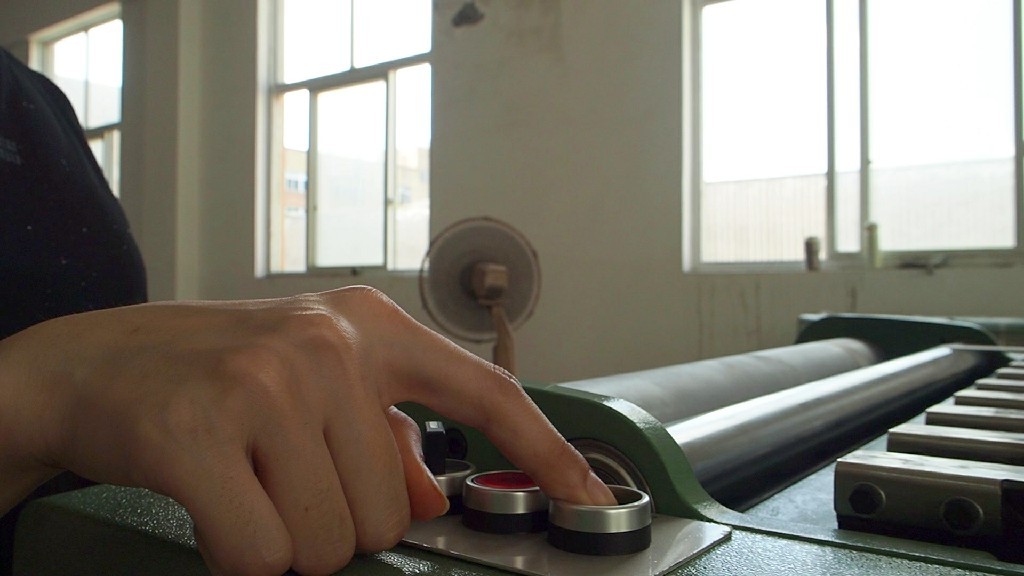

Take-up roller control	Woven narrow-tape structure sample
Elastic and non-elastic tape examples	Pattern and weave-structure examples

Technical Specifications

Output note: Actual production depends on tape width, thickness, weft density, yarn type, elasticity and machine settings. Send a sample or technical drawing for configuration confirmation.

Buyer Q&A

Q: What does CO 10-30 mean?
A: It identifies 10 tape lines with a maximum reed width of 30 mm for each line.

Q: Can the machine weave elastic tape?
A: Yes. The feeding configuration depends on the elastic yarn, tape structure and finished sample.

Q: Can it produce simple patterns?
A: Simple structures may be produced through warp arrangement and frame and chain settings. A sample should be checked before final configuration.

Q: What preparation equipment is required?
A: Warping equipment is normally required. Elastic-yarn feeding and finishing equipment depend on the product process.

Q: What information is needed for a quotation?
A: Provide a finished sample or drawing, yarn type, width, thickness, elasticity, expected output, factory power supply and destination.

Configuration Information

Please send the finished tape sample, material and yarn type, width, thickness, elasticity, required output, voltage and destination. These details are used to confirm the loom, preparation equipment and electrical configuration.
