6-Spindle Sewing Thread Winding Machine with Length Counter Admin Edit

1700.0 USD

Model:	CO-S
Min. Order:	1 Set/Sets
Trade Term:	FOB,CFR,CIF,EXW
Payment Terms:	Paypal, L/C, T/T
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air, Land
Production Capacity:	2000sets

Packing:	standard wooden...	Delivery Date:	15-20DAYS
Brand Name:	CREDIT OCEAN	Machine Type:	Sewing thread winding machine
Application:	Sewing thread on cone, column and horn bobbins	Spindles:	6 spindles
Thread Length:	0-30000 m	Bobbin Shapes:	Cone, column and horn/bugle
Model:	CO-S

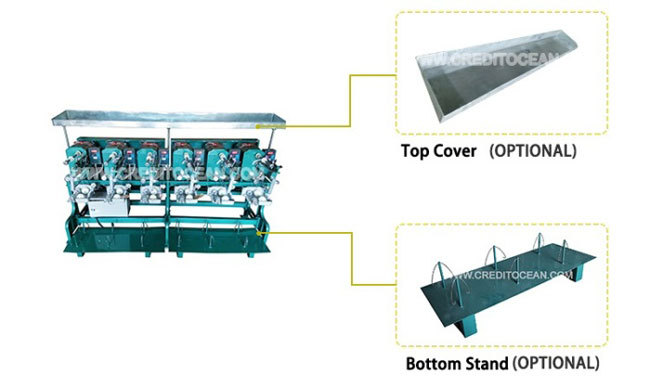

CO-S 6-Spindle Sewing Thread Winding Machine

The CO-S sewing thread winding machine is designed to wind sewing thread onto cone, column and horn or bugle bobbins. Six winding spindles support continuous workshop production, while the computer length counter controls winding length from 0 to 30000 m.

Automatic stop and memory functions retain production data after a power interruption. Automatic silicone oil application and electric tension adjustment help operators match winding conditions to the selected thread and bobbin.

Key Features

Six-spindle sewing thread winding configuration
Computer length counter with a 0-30000 m setting range
Automatic stop and memory after power loss
Automatic silicone oil device
Automatic electric tension adjustment
Independent motor for each winding head
Carrier for empty plastic bobbins

Applications and Bobbin Formats

Suitable for sewing-thread rewinding on cone, column and horn or bugle bobbins. Catalogue reference sizes are 4, 5 and 6 inches for cone or horn bobbins and 2 inches for column bobbins. Final bobbin size, thread specification and winding quantity should be confirmed before quotation.

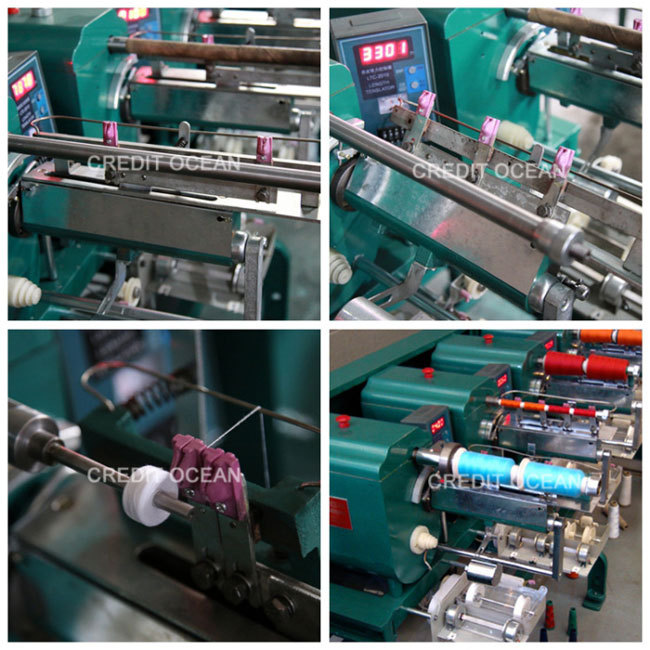

Product Images

Technical Specifications

Model	CO-S
Spindles	6
Thread Length	0-30000 m
Bobbin Shapes	Cone, column and horn/bugle
Reference Bobbin Sizes	Cone: 4/5/6 in; Column: 2 in; Horn/Bugle: 4/5/6 in
Motor Supply	3-phase, 380 V, 50 Hz, or as required
Packing Size	2.15 x 0.8 x 1.07 m
Net / Gross Weight	450 / 500 kg

Specification summary: 6 spindles, 0-30000 m computer length counter, 3-phase 380 V 50 Hz reference power, 2.15 x 0.8 x 1.07 m packing size, 450 kg net weight and 500 kg gross weight.

Buyer Q&A

Q: Which bobbin shapes can the CO-S wind?
A: It is configured for cone, column and horn or bugle bobbins. Send the bobbin drawing or sample for confirmation.

Q: How is the winding length controlled?
A: A computer length counter provides a setting range of 0-30000 m.

Q: What happens after a power interruption?
A: The machine supports automatic stop and memory functions when power is lost.

Q: What information is needed for a quotation?
A: Please provide thread material and count, bobbin shape and dimensions, winding length, required capacity, factory voltage and destination port.

Configuration Note

Final bobbin holder, winding quantity per spindle, voltage and production configuration must be confirmed against the buyer's thread and bobbin samples.
